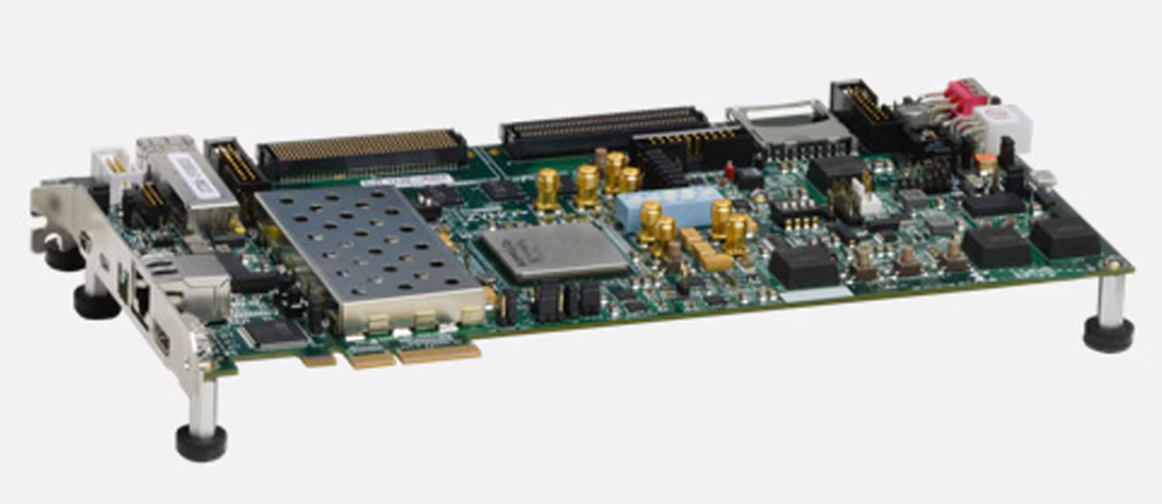

AMD Zynq™ 7000 SoC ZC706 Evaluation Kit
Giá bán: Liên hệ
Liên hệ đặt hàng: contact@tdsa.com.vn
Mô tả sản phẩm:
The AMD Zynq™ 7000 SoC ZC706 Evaluation Kit includes all the basic components of hardware, design tools, IP, and pre-verified reference designs including a targeted design, enabling a complete embedded processing platform and transceiver based designs including PCIe. The included pre-verified reference designs and industry-standard FPGA Mezzanine Connectors (FMC) allow scaling and customization with daughter cards. Please check the PetaLinux Software Development Kit page for information on the AMD processing systems.
Key Features & Benefits
- Optimized for quickly prototyping embedded applications using Zynq 7000 SoCs
- Hardware, design tools, IP, and pre-verified reference designs
- Demonstrates a embedded design, targeting video pipeline
- Advanced memory interface with
- 1GB DDR3 Component Memory
- 1GB DDR3 SODIM Memory
- Enabling serial connectivity with PCIe Gen2x4, SFP+ and SMA Pairs, USB OTG, UART, IIC
- Supports embedded processing with Dual ARM Cortex-A9 core processors
- Develop networking applications with 10-100-1000 Mbps Ethernet (RGMII)
- Implement Video display applications with HDMI out
- Expand I/O with the FPGA Mezzanine Card (FMC) interface
