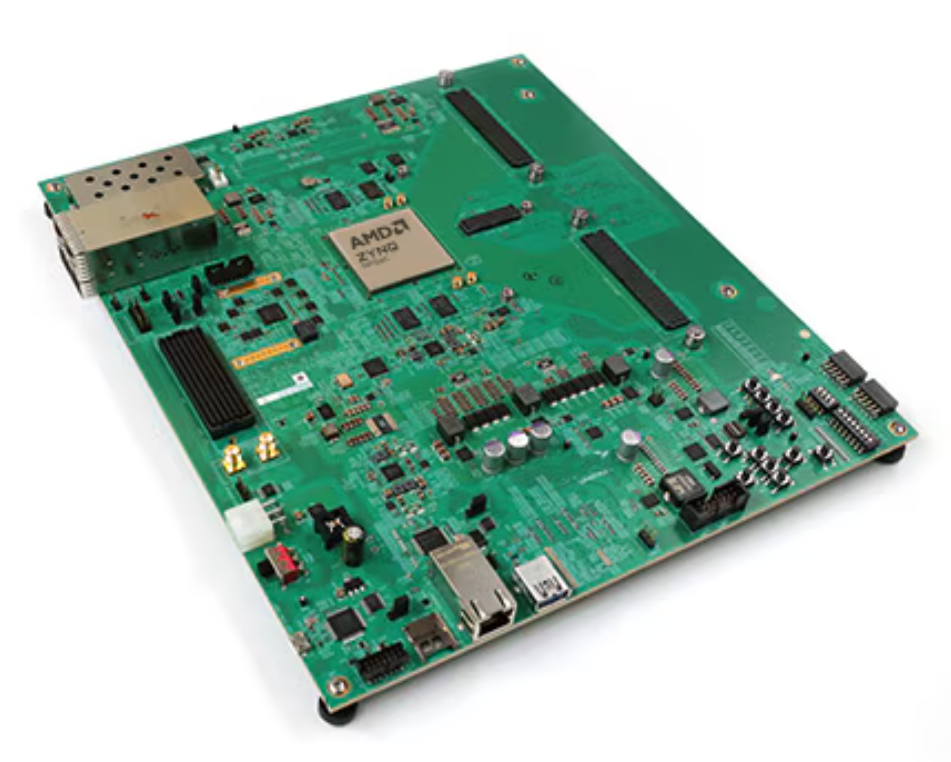

AMD Zynq™ UltraScale+™ RFSoC ZCU216 Evaluation Kit
Giá bán: Liên hệ
Liên hệ đặt hàng: contact@tdsa.com.vn
Mô tả sản phẩm:
Equipped with the industry’s only single-chip adaptable radio platform, the AMD Zynq™ UltraScale+™ RFSoC ZCU216 Evaluation Kit is the ideal platform for both rapid prototyping and high-performance RF application development. Featuring the Zynq UltraScale+ RFSoC Gen 3 ZU49DR, the ZCU216 evaluation kit supports direct RF sampling of sub-6GHz bands utilizing 16T16R high speed RF-DACs and RF-ADCs.
| Board Specifications | Value |
| Height | 12.225 inch (31.05 cm) |
| Width | 10.675 inch (27.11 cm) |
| Thickness (+/-5%) | 0.119 inch (0.302 cm) |
| Operating Environmental Temperature | 0◦C to +45◦C |
| Storage Environmental Temperature | -25◦C to +60◦C |
| RF Data Converter | |
| # of 14-bit RF-ADCs | 16 |
| Max Rate (GSPS) | 2.5 |
| # of 14-bit RF-DACs | 1 |
| Max Rate (GSPS) | 9.85 |
| Memory | |
| PS DDR4 | 4GB 64-bit SODIMM |
| PL DDR4 | 8GB 64-bit Component |
| Micro SD Card | 16GB |
| M.2 SATA Connector | Yes |
| QSPI | 2 |
| Communication & Networking | |
| USB (UART/JTAG) | 1 |
| RJ45 | 1 |
| SFP28 | 4 |
| USB 3.0 | 1 |
| Display | |
| DIP Switches | Yes |
| LEDs | Yes (RGB) |
| Push Buttons | Yes |
| Expansion Connectors | |
| FMC+ | 1 |
| Pmod | 2 |
| RFMC 2.0 | 2 |
| Add-on Cards | |
| XM650 | 1 |
| XM655 | 1 |
| CLK104 | 1 |
| Control & I/O | |
| I2C | Yes |
| PMBUS | Yes |
| JTAG PC4 Header | Yes |
| Boot Options | |
| SD Boot | Yes |
| QSPI Boot | Yes |
| JTAG Boot | Yes |
| Power | |
| 12V Wall Adapter | Yes |
| ATX Power Compatible | Yes |
