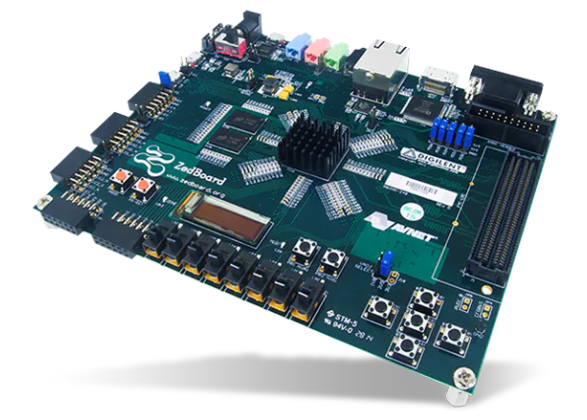

ZedBoard Zynq-7000 ARM/FPGA SoC Development Board

Giá bán: 22.000.000 VND

Liên hệ đặt hàng: contact@tdsa.com.vn

Mô tả sản phẩm:

The ZedBoard is a low-cost development board for the Xilinx Zynq-7000 all programmable SoC (APSoC), and a perfect option for those looking to buy a Xilinx FPGA board.

Take advantage of the Xilinx Zynq-7000 APSoCs tightly coupled ARM^®processing system and 7-Series programmable logic to create unique and powerful designs with the ZedBoard. This ARM board contains everything necessary to create a Linux^®, Android^®, Windows^®, or other OS/RTOS based design. Additionally, several expansion connectors expose the processing system and programmable logic I/Os for easy user access.

Target applications for this Xilinx 7 series FPGA board include video processing, reconfigurable computing, motor control, software acceleration, Linux/Android/RTOS development, exploring RISC processors (ARM), and general Zynq-7000 AP SoC prototyping.

The ZedBoard is supported by Xilinx’s Vivado Design Suite, including the free WebPACK version.

Guides and demos are available to help users get started quickly with the ZedBoard. These can be found through the Support Materials tab.

Xilinx Zynq-7000 AP SoC XC7Z020-CLG484
Dual-core ARM Cortex™-A9 processor
512 MB DDR3
256 MB Quad-SPI Flash
On-board USB-JTAG Programming
10/100/1000 Ethernet
USB OTG 2.0 and USB-UART
Analog Devices ADAU1761 SigmaDSP® Stereo, Low Power, 96 kHz, 24-Bit Audio Codec
Analog Devices ADV7511 High Performance 225 MHz HDMI Transmitter (1080p HDMI, 8-bit VGA, 128×32 OLED)
PS & PL I/O expansion (FMC, Pmod, XADC)
